BESS imbalance can be detected by monitoring differences in state of charge (SoC) between racks or modules with an APM, using advanced monitoring platforms, rather than relying only on voltage readings from the Battery Management System (BMS).
Advanced monitoring platforms combine BMS data, temperature measurements, and physics-based battery models to estimate the real state of charge of each rack. By comparing these estimates across the system, operators can identify imbalance before voltage limits or alarms appear.
This early detection allows operators to correct BESS imbalance before it leads to stranded energy, accelerated degradation, or revenue loss.
What is BESS imbalance?
BESS imbalance occurs when battery cells or racks operate at different voltage levels or states of charge.
Because cells in a Battery Energy Storage System are connected in series, the weakest cell determines the operating limit of the entire string or rack. When that cell reaches its voltage limit first, the battery management system stops charging or discharging to prevent overvoltage.
As a result, the other cells have not fully charged or discharged, reducing the usable capacity and overall performance of the BESS.
Why do battery cells in BESS become unbalanced?
BESS imbalance develops gradually as cells begin to behave slightly differently during operation. The most common causes include:
- Manufacturing variations between cells: even with high-quality manufacturing, small differences exist in cell capacity (typically around 0.28%) and internal impedance (around 0.72%).
- Thermal gradients across racks and containers: cells operating at higher temperatures tend to age faster. In large BESS installations, cooling conditions are rarely perfectly uniform. As a result, cells in warmer areas degrade faster than those in cooler zones.
- Inconsistencies in electrical connections: small variations in connectors and wiring resistance can create uneven current distribution between cells or modules. Over time, these differences cause some cells to experience slightly higher electrical stress than others.
Industry experience across more than 15 GWh of BESS projects shows that imbalance appears at virtually every site. It is therefore not an exception but an inherent characteristic of large battery systems that must be actively managed.
Why does battery imbalance spread and accelerate over time?
Once imbalance begins, it tends to spread through the whole system.
- Cells with slightly lower capacity or higher internal resistance reach their voltage limits earlier during charging or discharging. Because cells are connected in series, these weaker cells constrain the operating window of the entire rack.
- Over time, imbalanced cells spend more time near voltage extremes, which are precisely the conditions that accelerate lithium-ion degradation.
- As these cells age faster, their impedance increases further. This causes them to reach voltage limits even sooner in the next cycles.
The result is a self-reinforcing feedback loop: weaker cells degrade faster, which increases imbalance, which in turn accelerates degradation across the system.
How does BESS imbalance lead to stranded energy?
BESS imbalance leads to what the industry calls “stranded energy.”
When some cells reach their voltage limits earlier than others, the battery management system stops charging, even though many other cells could still store additional energy. For example, charging may stop earlier than expected (around 95% SoC).
During discharge, the pattern reverses. Some cells reach their minimum voltage earlier than others. The system shuts down while healthier cells still hold substantial energy.
This unused energy becomes stranded capacity, reducing the effective performance of the BESS.
“The challenge isn't just that imbalances exist, it's that conventional battery management systems lack the capabilities to identify them before they impact performance”
– Ashutosh Vats, BESS Business Development Manager at 3E.
Why can’t a BMS reliably detect BESS imbalance early?
Battery Management Systems (BMS) are essential for battery safety, but they were not designed for long-term performance monitoring across large storage assets.

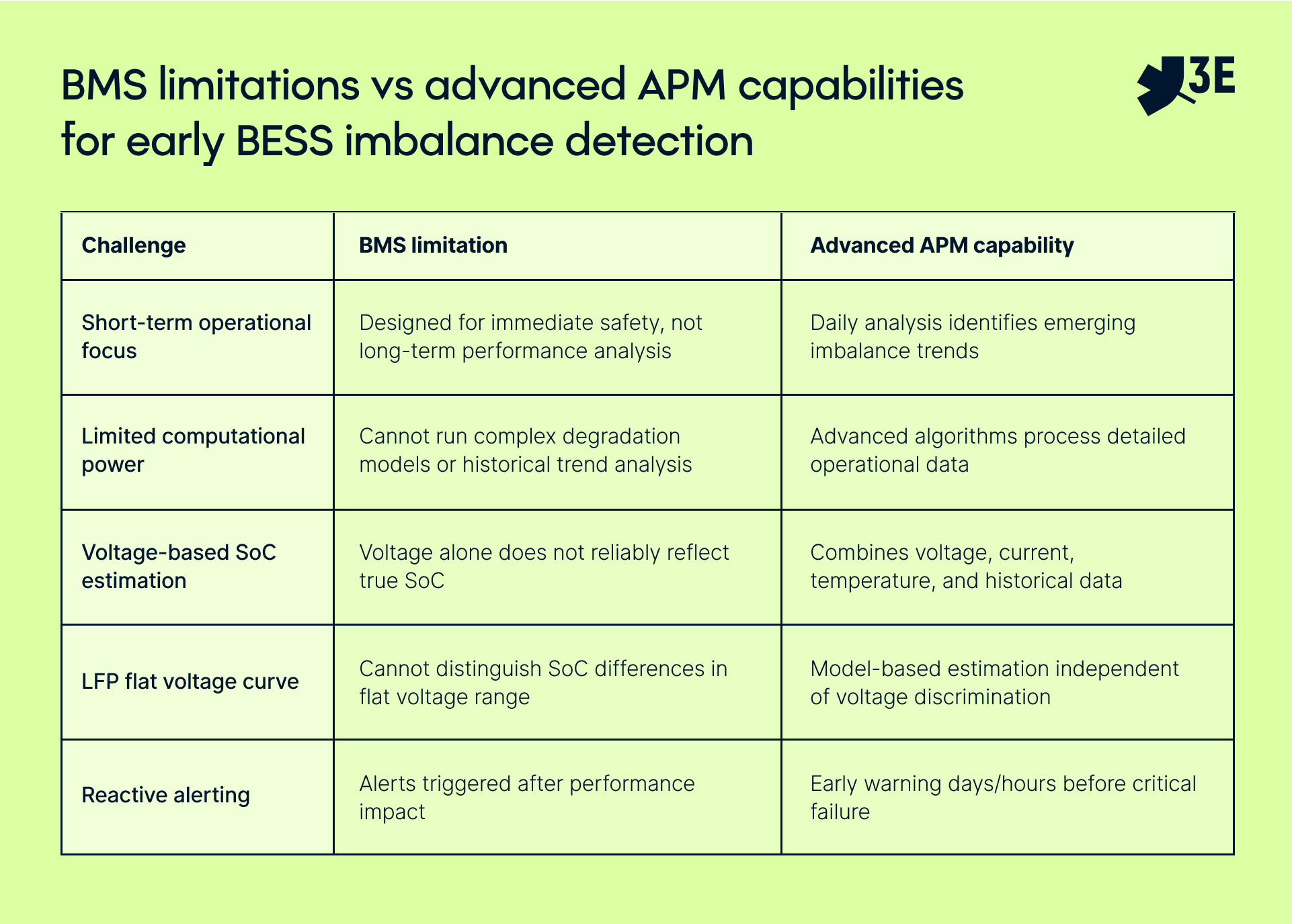

Several technical limitations make early imbalance detection difficult:
- Focus on short-term operations
Most BMS platforms prioritize immediate safety and operational control rather than long-term performance analysis. They are designed to prevent cells from exceeding voltage limits right now, not to detect gradual drift patterns that indicate emerging BESS imbalances weeks or months ahead. - Limited computational power
Typical BMS hardware has limited processing capacity. Complex degradation modeling, historical trend analysis, and advanced state estimation algorithms require computational power that most installed BMS simply don't have. - Voltage-based SoC estimation
Many BMS implementations rely heavily on voltage measurements to estimate state of charge (SoC). However, voltage does not always accurately reflect the true SoC, particularily under dynamic load conditions, temperature variations, or as cells age. What looks like balanced voltage may mask significant capacity differences. - The LFP flat voltage curve challenge
Lithium iron phosphate (LFP) batteries are increasingly used in utility-scale BESS, but they have a very flat voltage curve. This means that two racks can display almost identical voltage levels while their actual remaining capacity is very different. Because of this flat curve, voltage-based monitoring alone cannot reliably detect BESS imbalance. - Reactive alerts instead of predictive monitoring
Traditional BMS alerts only trigger after problems have already begun impacting operations. By the time an alarm is raised, cells may have been operating outside optimal ranges for days. Degradation may have accelerated, capacity may have been lost, and operators often face expensive corrective actions instead of simple preventive maintenance.
If BMS monitoring is not enough, how can operators detect BESS imbalance early?
BMS platforms protect cells from exceeding voltage limits, but they provide limited visibility into emerging imbalance across racks or sites.
To address this limitation, operators are adding an intelligence layer on top of their BMS. Advanced asset performance management (APM) platforms transform raw operational data into actionable insights by combining electrochemical modeling with real-time operational measurements. This approach enables earlier detection of BESS imbalance, before performance losses appear.
How advanced monitoring platforms detect BESS imbalance?
Advanced monitoring platforms typically operate through four key steps.
- Comprehensive data collection
Rather than relying on voltage alone, modern APM systems ingest multiple data streams: voltage and current from BMS, temperature across racks and modules, historical cycling patterns, and environmental conditions. This multi-dimensional dataset provides the foundation for accurate analysis.
- Physics-based State of Charge (SoC) estimation
Advanced algorithms reconcile voltage, current, temperature, and historical degradation patterns to calculate more reliable SoC estimates at the rack and module level.
To do this, advanced monitoring platforms use a digital twin of the battery system that reproduces its physical behaviour. By processing operational data from the BMS, the model reconstructs the internal state of each rack and estimates its actual state of charge.
This approach accounts for real-world complexity, including temperature effects, aging-related parameter drift, and LFP's flat voltage characteristics. As a result, it can identify SoC differences even when voltage appears similar.
- Rack-level imbalance visualization
Calculated SoC data transforms into intuitive visual representations showing imbalance severity across the entire site. Color-coded heatmaps, transitioning from blue (balanced) to yellow and orange (imbalanced), enable operators to spot problems at a glance. By this way, a rack shifting from balanced to imbalanced can often be detected days before operational impact occurs.
- Automated imbalance alerts
When imbalance metrics cross defined thresholds, the system generates prioritized alarms that route to control room operators. These aren't generic BMS error codes. They are specific, actionable notifications identifying which racks need attention, the severity level, and the trend trajectory.
What can operators do when BESS imbalance is detected early?
- Early detection allows opeators to move from reactive intervention to proactive asset management.
- When imbalance warnings appear days ahead of critical thresholds, operators can schedule targeted balancing procedures during low-price periods instead of responding to emergency shutdowns during peak revenue hours.
- Early detection enables root cause analysis of imbalance, improving long-term asset management. For example:
- Imbalance concentrated in specific racks may indicate manufacturing variations or localized cooling issues.
- Imbalance correlated with certain operating patterns may suggest that trading strategies are placing excessive stress on particular racks.
- Similar imbalance trends across multiple sites can reveal systemic operational or configuration issues across the portfolio.
- Early detection also supports warranty compliance and dispute resolution. Time-stamped monitoring data showing SoC divergence across racks provides evidence of how the battery operated over time and how emerging imbalance was addressed. This documentation helps asset owners demonstrate that the asset was operated correctly and that imbalance was addressed proactively, which can be critical if OEM warranty claims aris
What monitoring practices help operators detect BESS imbalance early?
Operators who successfully manage BESS imbalance typically follow several monitoring practices:
- They monitor more than voltage and current: advanced platforms combine operational data with modeling of battery behaviour to detect early signs of BESS imbalance and degradation.
- They require rack-level visibility: container-level averages can hide local performance issues. Rack-level monitoring helps identify problems before they affect the entire system.
- They rely on automated alerts: early warnings allow operators to catches trends before they become failures.
- They integrate imbalance detection, degradation tracking and warranty compliance: operators treat them as interconnected aspects of asset performance rather than isolated monitoring functions.
Why is managing BESS imbalance essential for protecting asset value?
The technology to detect and manage BESS imbalance already exists. The algorithms are validated. The data infrastructure is proven.
The only question is whether asset owners will implement these capabilities before imbalance costs them another quarter of stranded capacity and accelerates battery degradation.
In today’s energy storage market, margins are tightening due to market saturation and declining capacity prices. Under these conditions, operators cannot afford to lose 10–15% of usable battery performance because of undetected imbalance.
Imbalance management is therefore rapidly becoming table stakes for operators who want to maximize BESS asset value and long-term revenue.
Key takeaways
- BESS imbalance develops gradually due to manufacturing differences, temperature gradients, and electrical resistance.
- Even small variations can reduce usable capacity by 10–15% in large battery systems.
- Traditional Battery Management Systems (BMS) are designed for safety, not fleet-level performance monitoring.
- Advanced BESS monitoring enables earlier detection of imbalance and prevents accelerated battery degradation.
- Managing imbalance is becoming essential for maximizing BESS asset value and revenue.
